Features:
Advanced system configuration using digital power amplifier chip TPA3251 for efficient operation.
Highquality meterial,it can provide a highquality listeningexperience,safe and druable
TPA3251 is 220Wx2+350W 2.1channel power amplifier board.It supports monolithic integration analog, high-voltage functions.
Compared with other amplifier processes YS-S350H TPA3251 has a higherchip area. It also reduces crosstalk and improves sound quality.
Highly integrated selfprotection circuit, including overvoltage, undervoltage, overheating, clipping, short circuitprotection, etc
Specifications:
Model:YS-S350H
2.1 Channel Amplifier Board

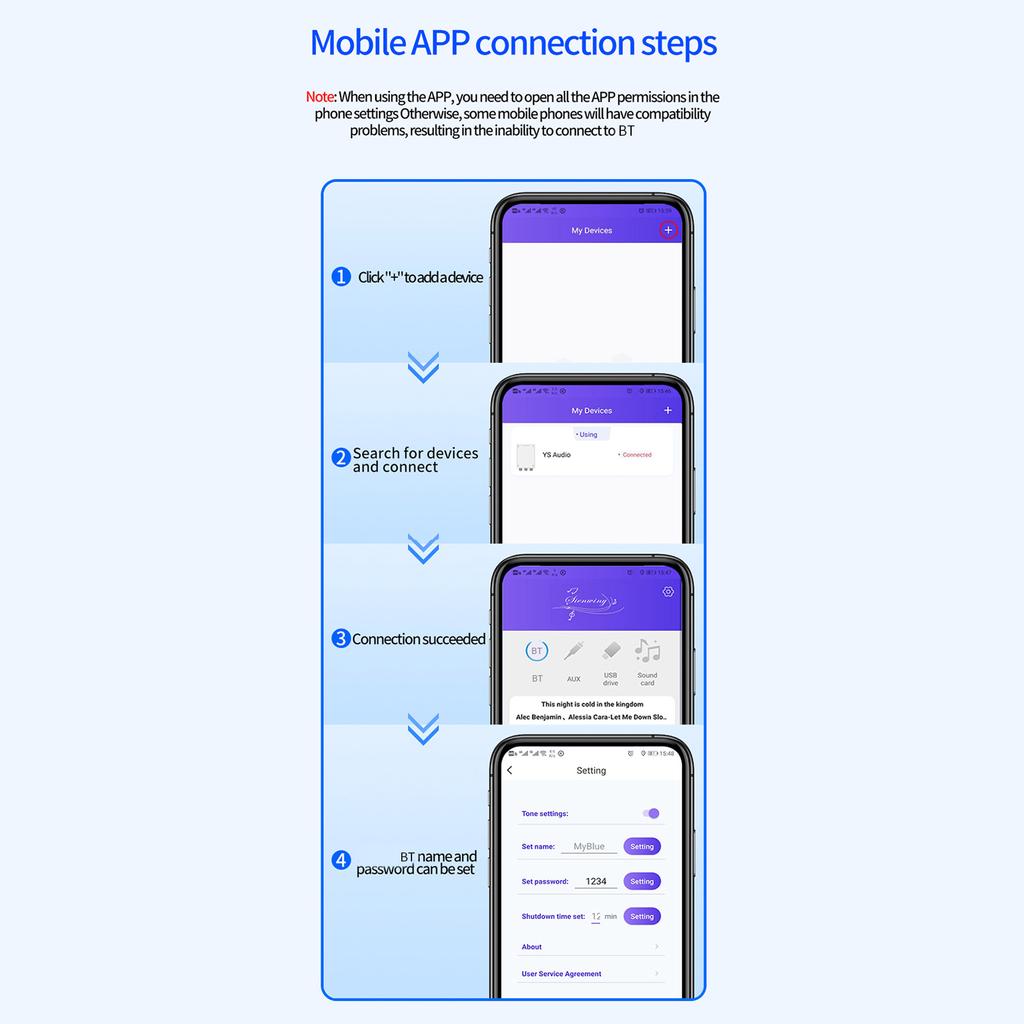

BluetoothCompatible:BT5.1
Chip:TPA3251 220Wx2+350W HighPower
Subwoofer Super 7498E Audio Amplifier Board
Frequency: 20hk-20Khz
Signal to noise ratio: 98db
Power supply: 18-38V10A
AudioInput: BT5.1+AUX+UDisk+USB sound card
AudioOutput: left and right channels+subwoofer
Protectionmechanism: overvoltage, undervoltage, overheating, clipping, short circuitprotection, etc
Size:approx 133x130x25mm/5.24x5.12x0.98in
Material: Plastic + Metal
Note:
Due to the problems of lighting effects and shooting angles, there will be certain tolerances in the product, please understand.
Please allow 0-1cm error due to the manual measurment.
Package includes:

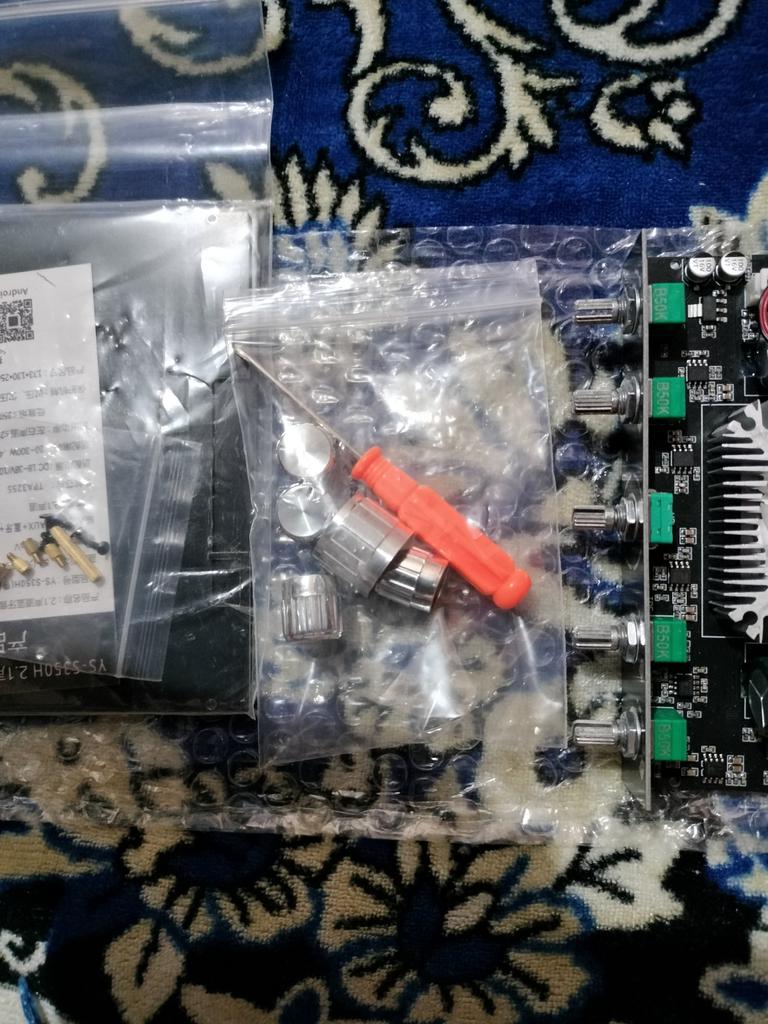

1PC x TPA3251 Power Amplifier Board
