⚠️【Be sure to check if the products you saw before purchasing fall under the following categories! 】
✅【Voltage Compatibility】
Electrical appliances are designed to meet Japanese voltage specifications (90-110V), so changing the voltage can cause malfunction.
✅【Plug type 】
Our products use Japanese plug type (Type A or Type B).
Use the conversion adapter as needed.
✅【Transformers & Adapters are important] 】
The transformer adjusts the voltage to the customer's device requirements.
The conversion adapter only changes the shape of the plug and does not adjust the voltage.
Using only the conversion adapter without a transformer can damage the product.
✅【Responsibility】
We are not responsible for any malfunction or damage caused by improper use, such as operating a product without a transformer.
―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―🔹―
Country of origin: China
Assembly type

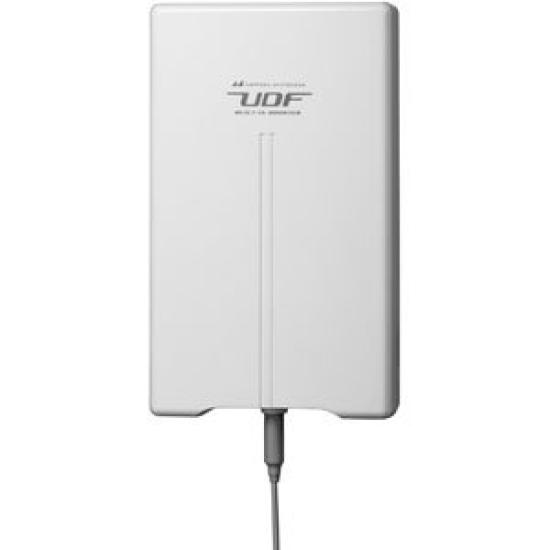

Reception channel: 13~52ch, reception frequency: 470~710MHz, antenna gain: 6.5~8.5dB, booster performance: 17~21dB amplification, total gain: 23~28dB
Output level: 90dBμV, impedance: 75, (F type) Ω, voltage standing wave ratio: 3 or less, power half width: 80 degrees or less, front-to-back ratio: 20 or more dB, power supply: DC15V/0.03A, swept area: 0.116m2, mast diameter used: φ22, ~49mm, square column: 25×25~45×45mm
●Power supply (power inserter/AC adapter)/Reception frequency: 13~52MHz, Insertion loss: 1.0 dB or less, Impedance: 75 (F type) Ω, AC adapter input: AC100 (50/60Hz)V, AC adapter output: DC15V/0.35A
Accessories: Stand: 1 piece, Mounting bracket A (for the mast on the back of the main unit): 1 piece, Mounting bracket B (for direction rotation): 1 piece, Mounting bracket C (mast bracket): 1 piece, Wrench: 1 piece, AC adapter: 1 piece, Power supply inserter: 1 piece, Waterproof cap: 1 piece, Instruction manual, Warranty card (warranty period: 1 year)
Size/Height 431 x Width 270 x Depth 61mm (antenna body only)
