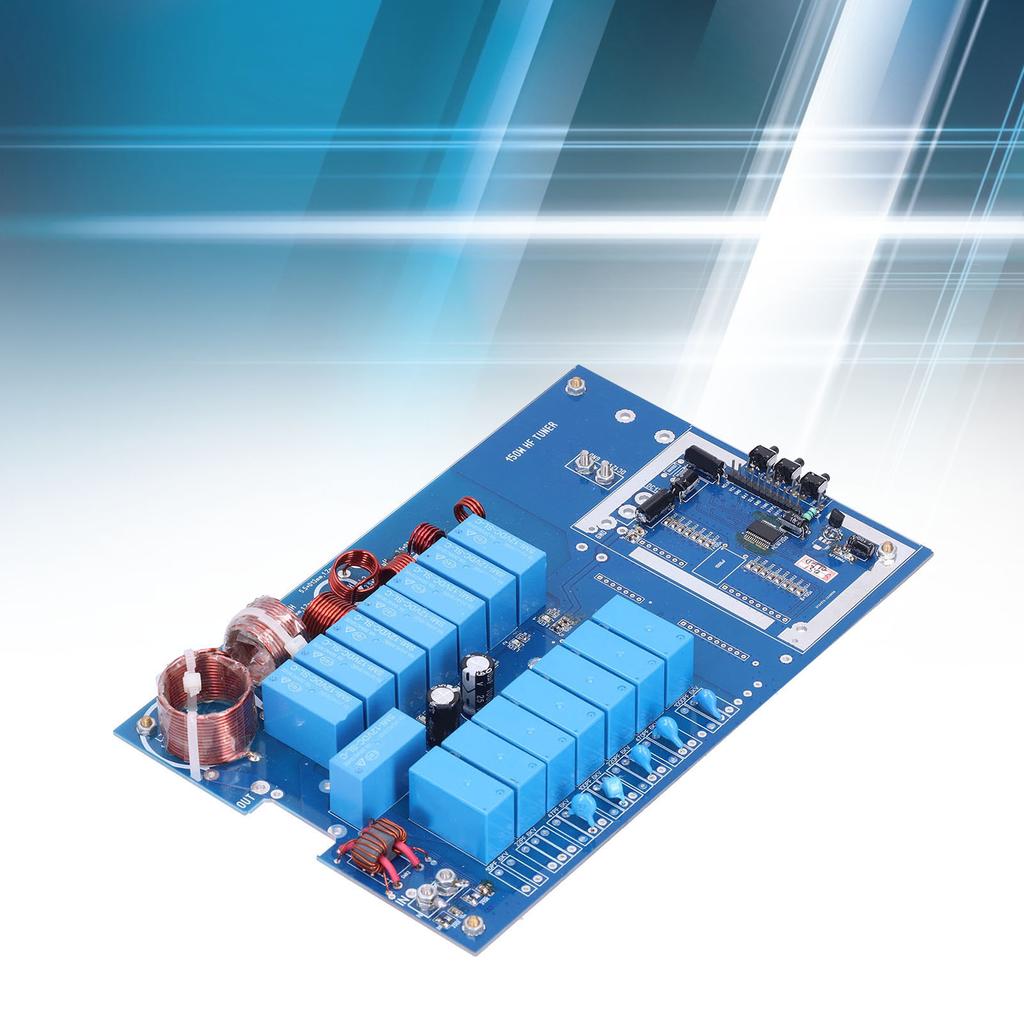

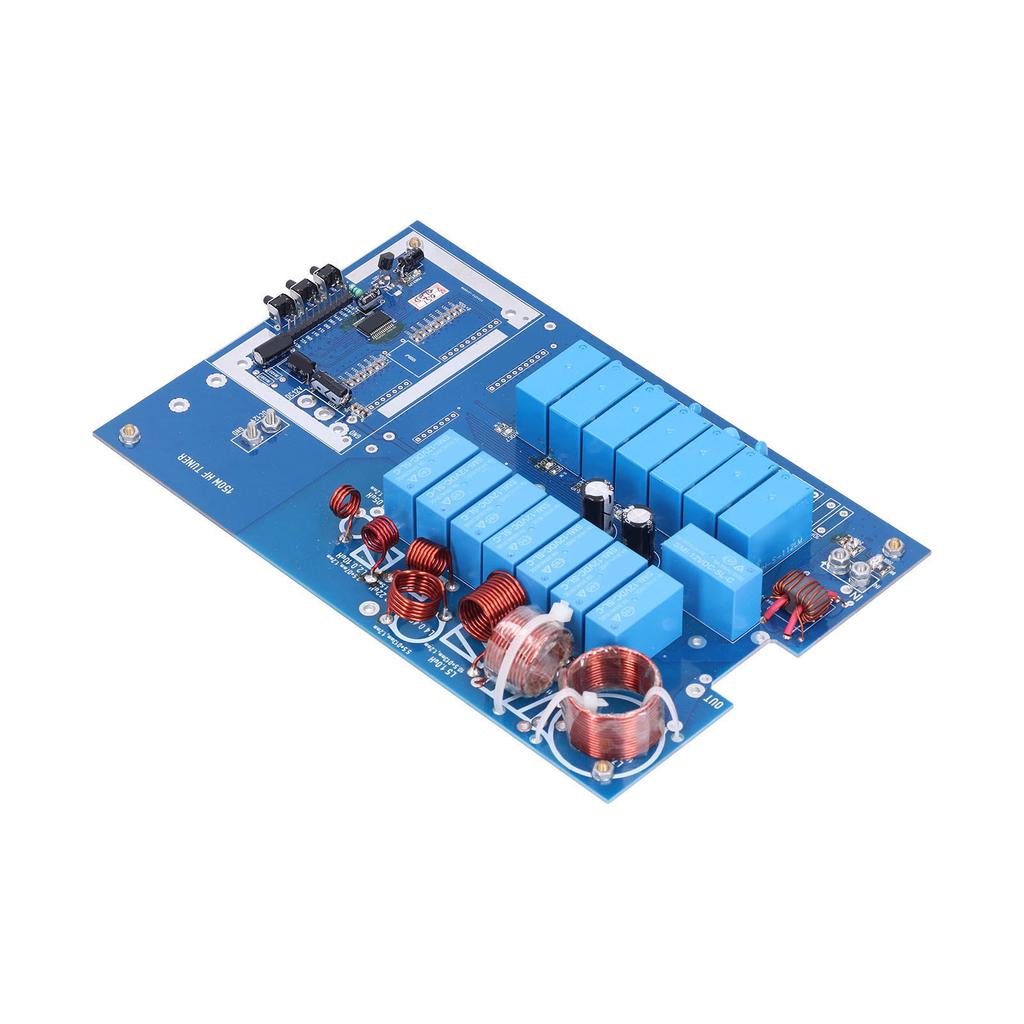

DIY Motherboard Kit Module Automatic Tuner Host Board + Cover ATU‑100

Feature: 1. Can be applied to any shortwave machine within 150w (as long as can output 10-15w) 2. The product adopt for PIC16F1938 single-chip microcomputer, adopt 7 LC combinations 3. Using SMI-12V, 10A relay, maximum 200W, it is recommended that long-term use does not exceed 150W 4. This tool set includes motherboard and , you can complete it by yourself, very convenient 5. Impedance tuning range from 5Ω~1.1KΩ, allowable supply voltage range is 12-15VDC Specification: Item Type: DIY Motherboard Kit Material: Resin Model: ATU-100 Impedance Tuning Range: 5Ω~1.1KΩ Power Measurement Accuracy: 10% Maximum Installation Inductance: 10μH Allowable Supply Voltage Range: 12-15VDC Package List: 1 x Motherboard 1 x 2 x Blue Side Panel 6 x Flat Screw 1 x Module 1 x White Rope 1 x Cable 1 x Black Button 1 x Black Connector 1 x Three-Pin Connector 2 x Fixed Buckle 1 x Copper Wire 1 x Round Hole Connector 6 x Round Screw 6 x Small Blue Cover 5 x Cup Screw 5 x Nut 1 x User Manual Note: This is a DIY automatic tuner. After the motherboard is assembled, you can correctly put it in the cover box yourself, and then you can use it Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
