Feature:
1. The new two-way high-power thyristor, because the current can reach 80A, it is a good solution to the overcurrent problem caused by the electric furnace wire being too small in the case of cooling
2. Can easily adjust the output voltage of the mains power supply. Adjust between 0-100% (220 volts in 100 steps, non-linear), for the use of electrical appliances
3. Electric stove, water heater heat adjustment, lamp light adjustment, small motor speed adjustment, electric soldering iron temperature adjustment, etc.
4. Can be used for large electrical appliances with a power consumption of less than 10,000 . Since the power is already large, ordinary household electrical appliances or small factories are sufficient
5. Comes with heat sink, thicker and enlarged heat sink. can use when you get the product
6. The value is automatically saved, and will automatically start to the last adjusted value after power on
Specification:
Item Type: Thyristor Electrical Voltage Regulator
Material:
: Aluminum alloy
Circuit Board: Resin
Maximum Power: 10000W resistive load instantaneous limit power, it is recommended to use within 5000W for a long time at room temperature

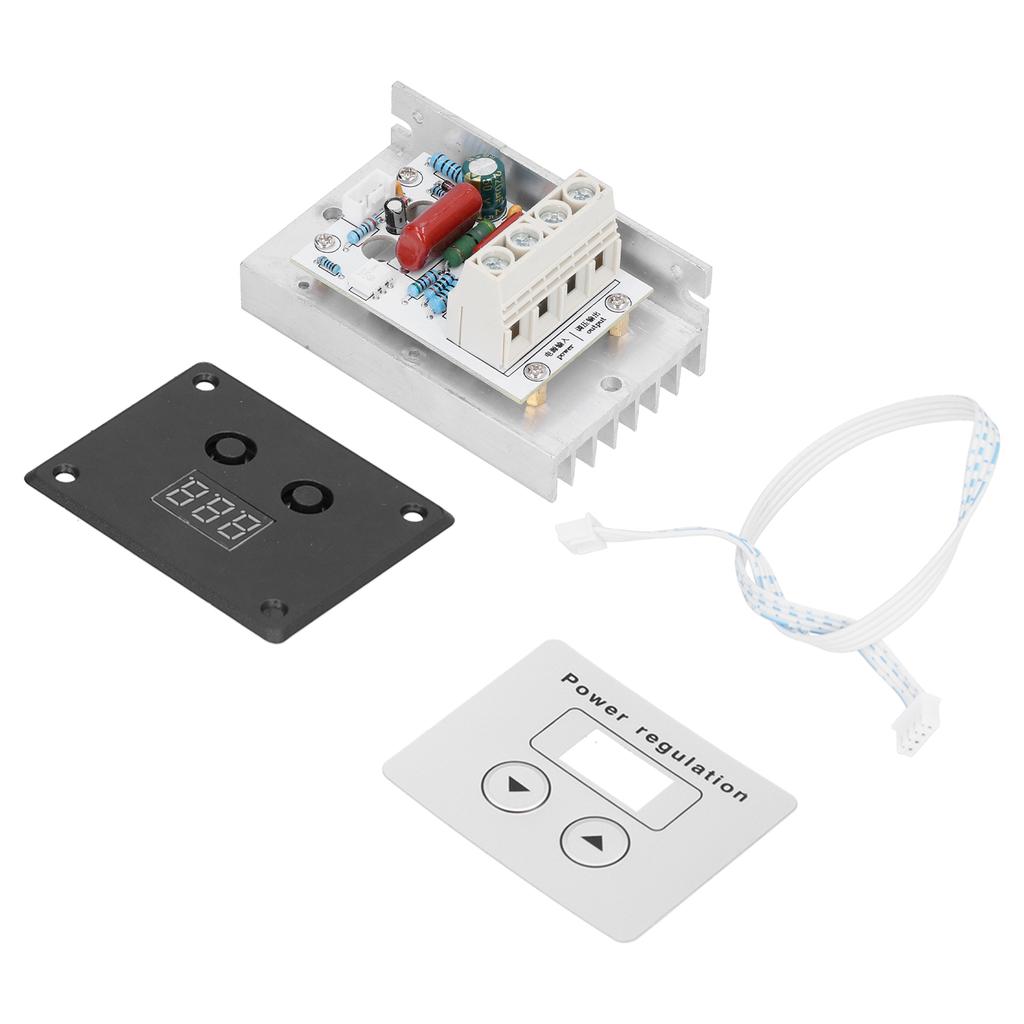

Package List:
1 x Digital Voltage Regulator
1 x Adjustment Panel
1 x Panel Patch
Note:
1. The input port is connected to 220VAC, and the output port is connected to electrical appliances. Press the up and down keys to play the role of light and dark adjustment, speed adjustment, voltage adjustment, and temperature adjustment, which is very convenient to use.
2. Equipment without starting capacitor is not suitable for use, AC to motors cannot be used, motors with starting capacitors can be used, fans and fans can be used, and those with CW and CCW cannot be used. Please determine the application load by yourself. The working principle is to change the speed by adjusting the voltage through the thyristor, which is the same principle as the fan speed controller. When choosing a switch for motor speed control, please choose a switch with 3 times higher power than the motor (the instantaneous current when the motor starts is 3 times higher, such as the motor 100w, the optional switch is 400w).
3. When purchasing bulb dimming and electric furnace wire temperature adjustment, please purchase a switch with a power that is twice as high (for example, the power is 100w, and the optional switch is 200W).
