Feature:
1. FOR EXCITATION SYSTEM: The automatic voltage regulator is a part of the brushless generator excitation system, with 120VDC excitation field output.
2. 3 PHASE PMG: The excitation power is from 3 phase permanent magnet generator (PMG) to isolate the influence of AVR control circuit and nonlinear load.
3. WORKING PRINCIPLE: Induct the voltage in the main winding of the generator and control the power fed into the exciter stator to raise the main rotor to maintain the output.
4. GOOD PROTECTION: The generator voltage regulator has low speed, overexcitation and LAM protection to ensure safe operation and reliable working.
5. COMPACT SIZE: The generator automatic voltage regulator has compact size, stable performance, less interference and wide application range.
Specification:
Item Type: Automatic Voltage Regulator

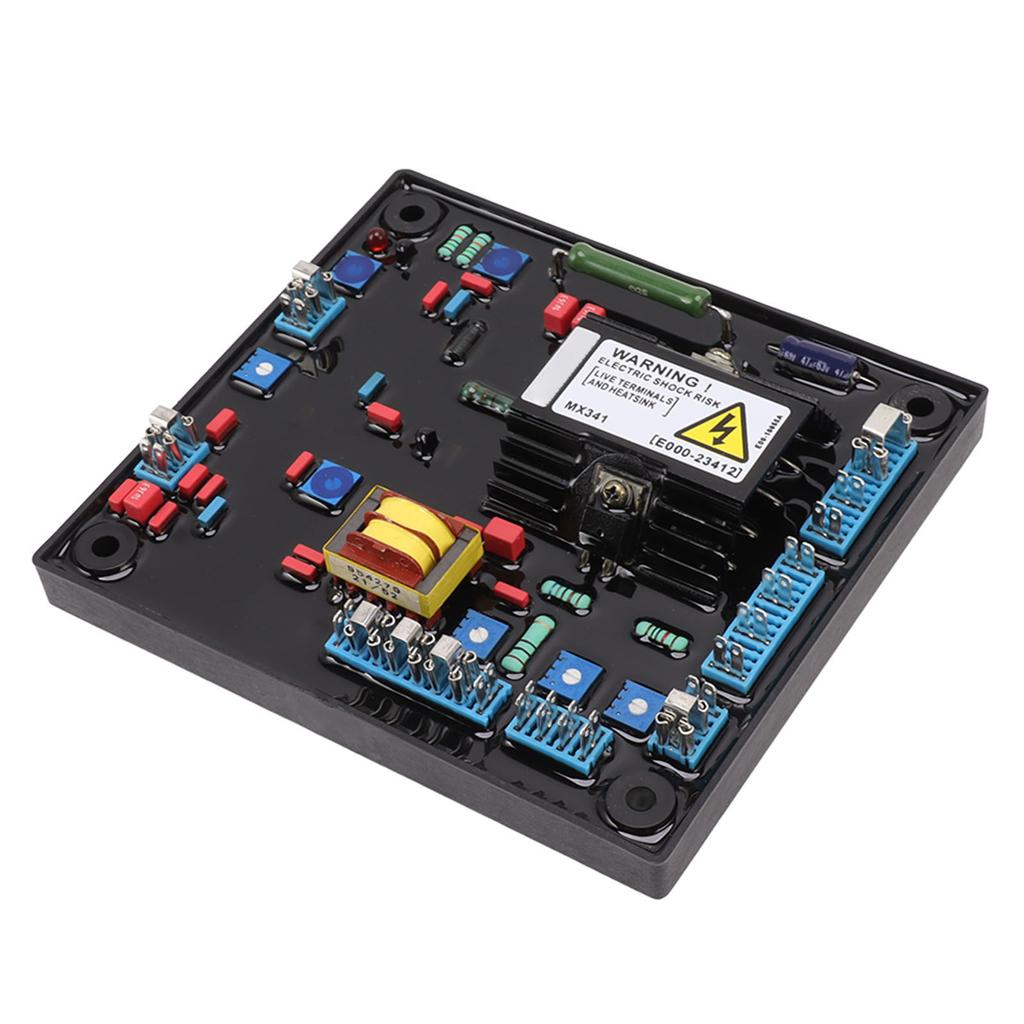

Model: MX341 Red
Input Power: 140-220V AC 3 Phase 3A (PMG)
Excitation Field Output: Voltage 120VDC (maximum), current 2.7A (continuous), 6A in 10 seconds (discontinuous)
Impedance: Minimum 15Ω
Adjustment Rate: ±1% (for brushless generator)
Protection: Built in low speed, overexcitation, LAM
Package List:
1 x Voltage Regulator
1 x User Manual
