Feature:
1. LOW FREQUENCY PROTECTION: This AVR board features low frequency protection and EMI suppression circuit function, safe and reliable for long term use.
2. VOLTAGE ADJUSTABLE: The voltage, stability and low frequency protection settings can be adjusted to meet your actual needs.
3. FUSE PROTECTION: This voltage regulation board is equipped with high breaking capacity fuse protection.
4. EXCELLENT PERFORMANCE: The AVR has a stable and quick voltage regulation work, take it for more efficient generator operation!
5. IDEAL REPLACEMENT: This voltage regulation board is an ideal replacement for the old and damaged parts!
Specification:

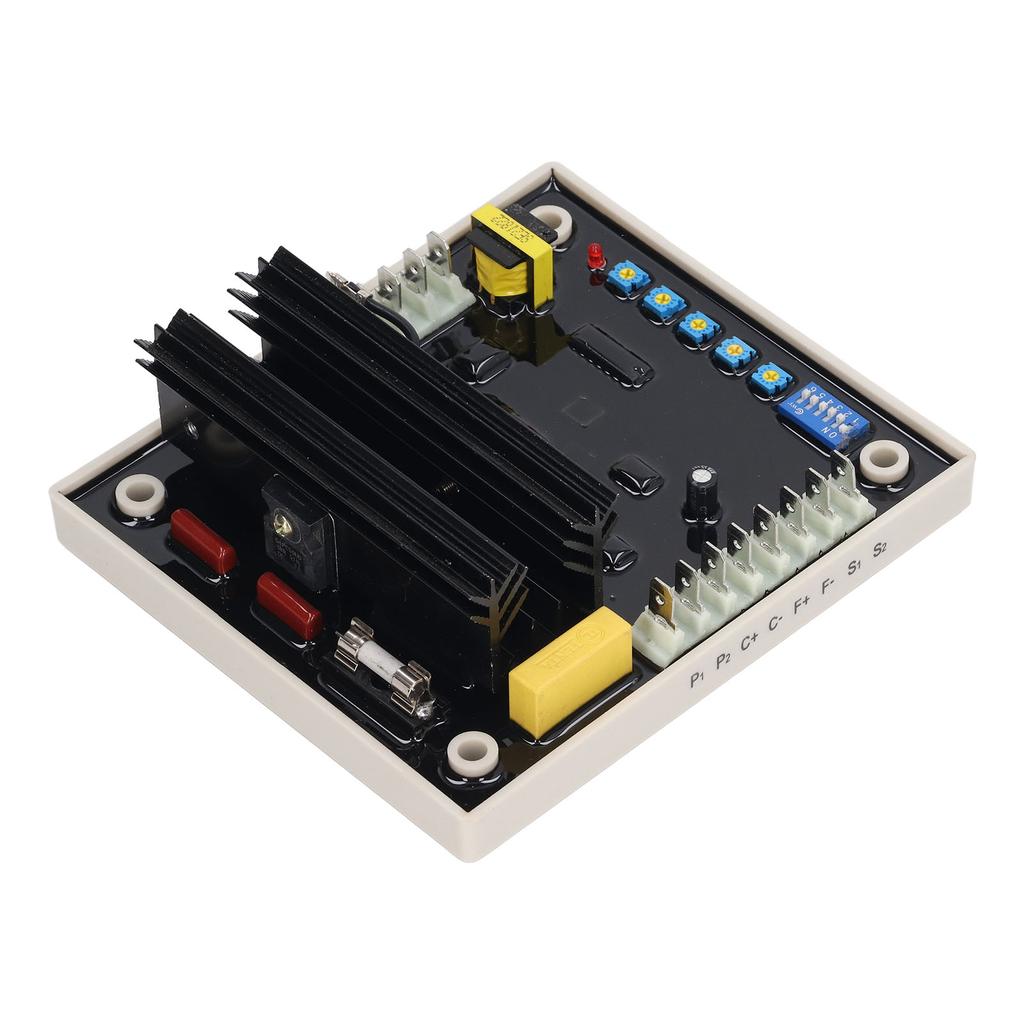

Item Type: Generator AVR
Mode: EA64 5
Material: ABS
Detection Voltage Input: S1
Voltage:
220/440 VAC single phase
190-290 VAC at 220 VAC
330-515 VAC at 440 VAC
Frequency: 50, 60 Hz (SW1 selection)
Power Input P1, P2
Voltage: 30-260 VAC single phase
Frequency: 40-500 Hz
Excitation Output:
Voltage:
85 VAC at 110 VAC input
170 VAC at 220 VAC input
Current: 5A continuous and 10A in 60 seconds non continuous
Resistance: Greater than 9 Ω
Fuse: Approx. 5 x 20mm / 0.2 x 0.79in S505 5A/250V slow melting type
Package List:
1 x
Generator AVR
