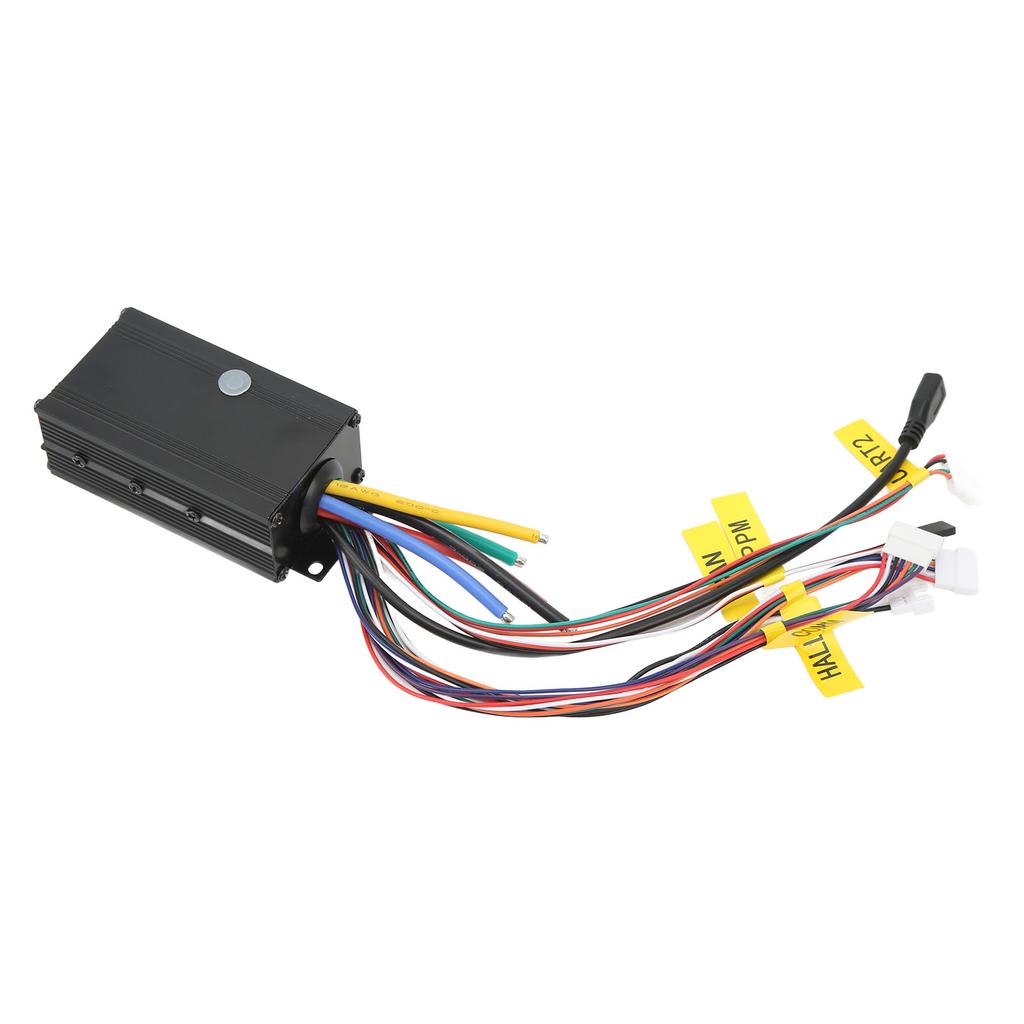

ESC Aluminum PCB Single Drive 14‑84V Electric Skateboard Scooter Speed Controller

Feature: 1. HEAT DISSIPATION AND DURABLE: Aluminum substrate material in the circuit for heat diffusion is extremely effective treatment, increase the heat dissipation effect, prolong the life 2. PROTECTION SHELL: Aluminum alloy shell protection, effectively prevent foreign matter from entering 3. FLEXIBLE HEAT DISSIPATION: The need for greater heat dissipation can be added to the metal copper paste in the metal sheet for heat conduction, where you need heat dissipation to stickwhere 4. CPU PARAMETERS: The CPU adopts the main frequency of 168MHZ and the STM32F405 of CORTEX M4 architecture with DSP function 5. MOS TUBE PARAMETERS: 12 HYG015N10NS1TA high current MOS tubes are used, and the parameter is 100V 380A Specification: Item Type: ESC Material: Aluminum Voltage: 14-84V (4-20S) Firmware Upgrade: USB online firmware upgrade is supported EPRM: 150,000 Cable: 12AWG BEC: 5V 1A output, used for 5V 1A output of external electronic equipment Supported Sensors: ABI, HALL, AS5047, AS5048A Communication Ports: USB, CAN, UART Control Mode: Support current, duty cycle, speed, position control mode Control Communication Mode: Support PPM, ADC, NRF, UART Current: Continuous current 100A, maximum current 120A (duration depends on external heat dissipation) Package List: 1 x ESC 1 x USB Cable 1 x Hall Line 1 x User Manual
