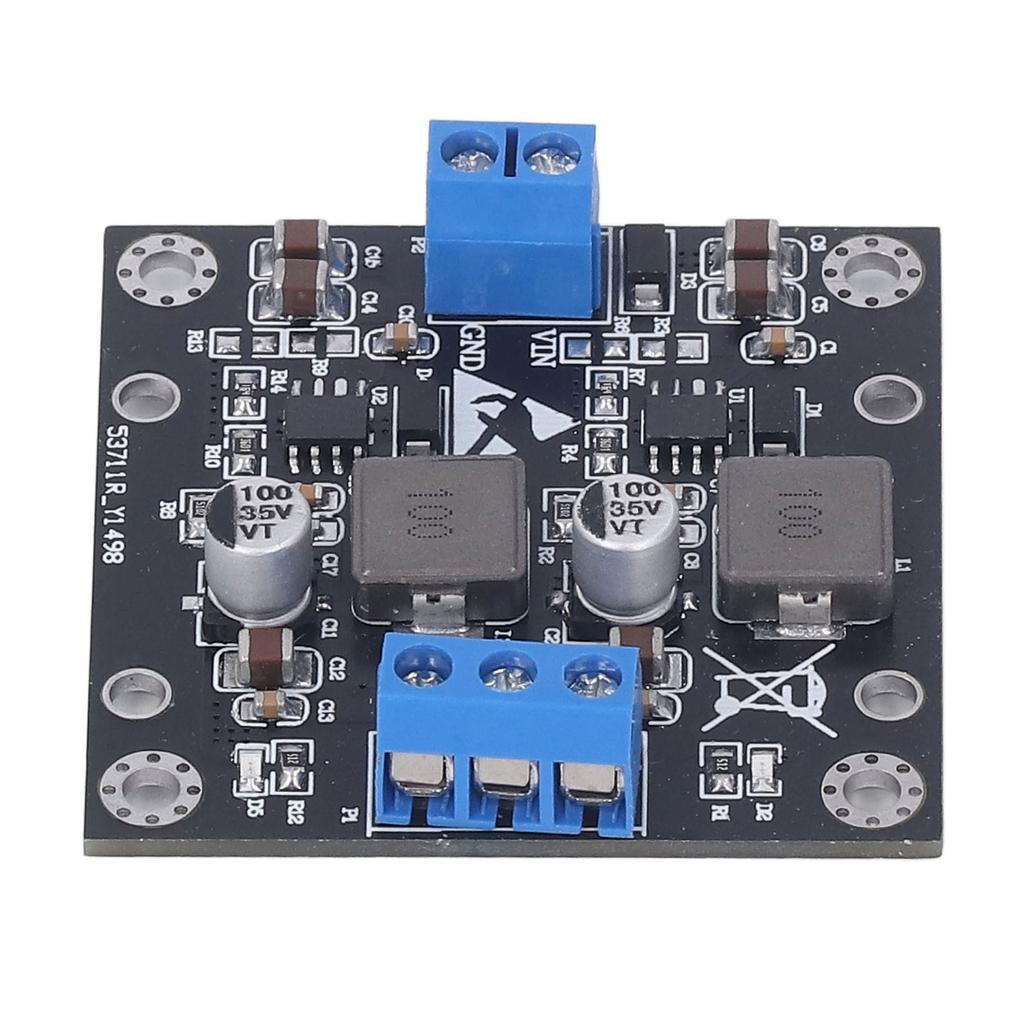

Power Supply Module Reverse Power Supply TPS54360 Chip Buck Switch Drive Module Low Ripple 12V

Feature: 1. Wide Application: This switch module is suitable for controlling the output of power supply equipment, motor, bulb, LED lamp, DC motor, micro water pump, solenoid valve, etc. PWM can be input to control motor speed, lamp brightness, etc. 2. Professional Production: The module layout and wiring refer to the official design specification, which is easy to use and has small wrinkles. 3. Basic Parameters: This module adopts TPS54360 chip, the maximum load current of positive voltage can arrive 3.5A, and the theoretical conversion efficiency can arrive 91%. 4. Multi Protection: This chip possesses overheat, overvoltage and frequency turn back protection, take and use it with confidence! 5. Compact Size: This power supply module has a compact size, light weight, which is easy to install and use. Specification: Item Type: Power Supply Module Mode: TPS54360 Material: ABS, Electronic Component Module Type: Buck switching power supply Input Voltage: 7V-40V (maximum 40V) Output Voltage: 12V Output Current: 3.5A (positive voltage), 2.4A (negative voltage) (The maximum output current is unbalanced, please pay attention to current limit when using) Conversion Efficiency: Up to 91% (positive voltage), better than 77% (negative voltage) Static Power Consumption: 5mA Voltage Regulation Rate: ± 1% Switching Frequency: 600KHz Output Ripple: Better than 40mV (+ 5V at 3.5A ); Better than 40mV( -5V at 2.4A ) Package List: 1 x Power Supply Module 4 x Screw 4 x Nut Note: This module has no reverse connection protection, please check and compare the power carefully before powering on, otherwise the module will be damaged.
