1.The lens collar foot is designed and improved according to the original parameters of TS-151. Approximately 105mm long x 38mm wide x 31mm high, can use original screws with a net weight of about 105g; Sigma 70-200mm F2.8 DG DN OS Sports (E mount/L mount) and 500mm F5.6 DG DN OS Sports Compatible with (E mount/L mount) lenses only.
2. The top of the replacement feet adopts a wavy-shaped non-slip design, suitable for reverse carrying. The connection part with the lens uses a hollow structure to reduce weight;
3.The bottom is an ARCA-SWISS fit quick release plate with a length of about 60mm, and the plate has 1/4 and 3/8 screw holes reserved. Stainless steel limit screws are removable and support Arca structural stabilizers;

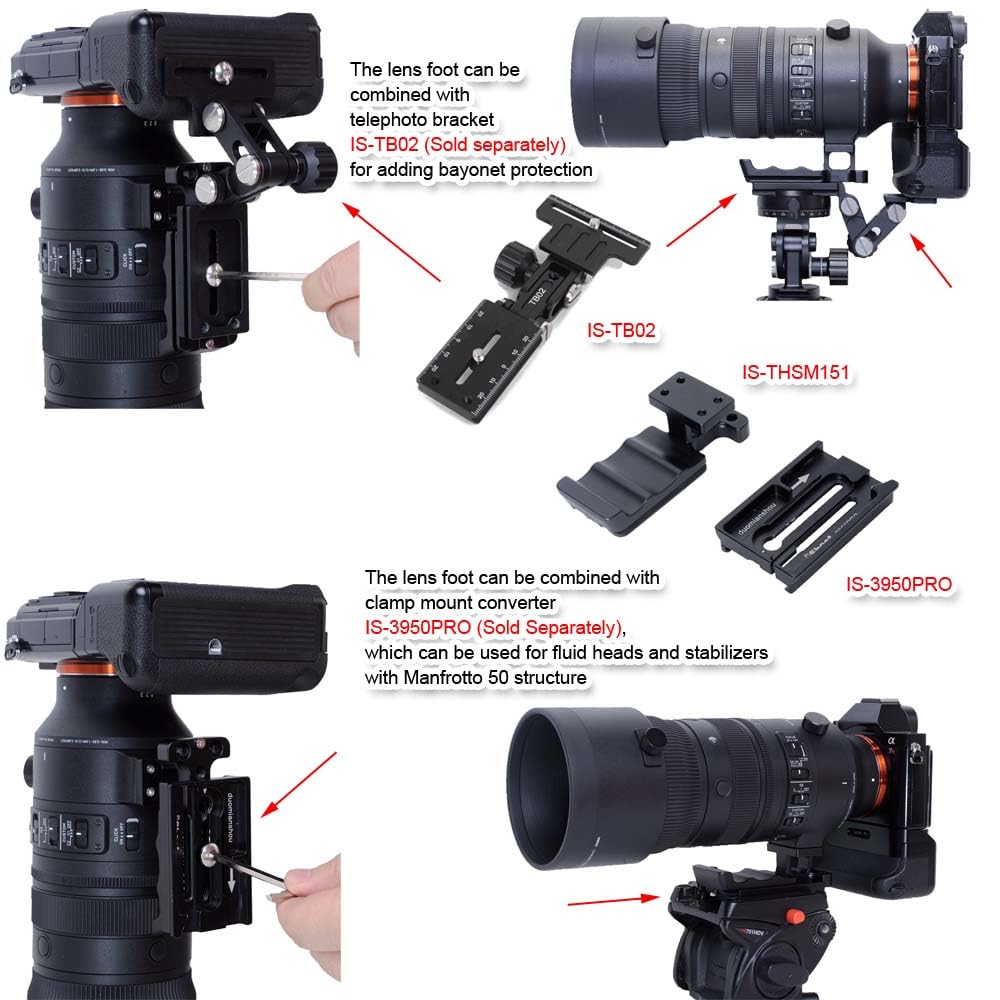

4.The lens foot can be combined with the IS-TB02 telephoto lens bracket (sold separately) to add bayonet protection. Can be combined with IS-XGII stainless steel suspension screws (sold separately) for use with a shoulder or wrist strap.
5. Lens collar foot IS-THSM151 can be combined with clamp mount converter IS-3950PRO (sold separately) and can be used with Manfrotto 50 construction fluid heads and stabilizers.
iShoot Lens Ring Tripod Socket Replacement Foot Tripod Mount Ring Base Tripod Socket IS-THSM151
Sigma 70-200mm F2.8 DG DN OS Sports & 500mm F5.6 DG DN OS Sports Lens
Compatible with 39mm Arca Fit quick release plate on the bottom.
Compatible with RRS / ARCA-SWISS Fit Tripod Head Clamp & Arca Fit Stabilizer
Main features:
1.The lens collar foot is designed and improved according to the original parameters of TS-151. Original screws with a length of about 105 mm x width of 38 mm x height of 31 mm and a net weight of about 105 g can be used;
2. The top of the replacement feet adopts a wavy-shaped non-slip design, suitable for reverse carrying. The connection part with the lens uses a hollow structure to reduce weight;
3.The bottom is an ARCA-SWISS fit quick release plate with a length of about 60mm, and the plate has 1/4 and 3/8 screw holes reserved. Stainless steel limit screws are removable and support Arca structural stabilizers;
4.The lens foot can be combined with the IS-TB02 telephoto lens bracket (sold separately) to add bayonet protection. Can be combined with IS-XGII stainless steel suspension screws (sold separately) for use with a shoulder or wrist strap.
5. The lens collar foot IS-THSM151 can be combined with the clamp mount converter IS-3950PRO (sold separately) and can be used with Manfrotto 50 construction fluid heads and stabilizers.
6.The tripod mount ring base is made of aviation aluminum, CNC precision machined, hollowed out lightweight design, polished and surface anodized finish. The appearance and exquisite workmanship are much better than similar products made by mold.
Compatible with Sigma lenses:
70-200mm F2.8 DG DN OS Sports (E Mount / L Mount)
500mm F5.6 DG DN OS Sports (E Mount / L Mount)
Package includes:
1 x iShoot Lens Collar Stand Replacement Legs IS-THSM151
(Note: Other items in the photo not shown here are for illustrative purposes only and are not included)
