Features:
This
VFD uses unique control method to realize high moment of force, high accuracy and wide speed regulating range driving, with high performance.
It
has good antitrip performance and ability to adapt to rough power,
temperature, humidity and dust interference, greatly improved stability.
By
optimizing PWM control technology and electromagnetic compatibility, it
satisfies users" requirement of low noise, low electromagnetic
interference.
Simple to operate and wire, connect to wires by screw terminals which are more convenient
.

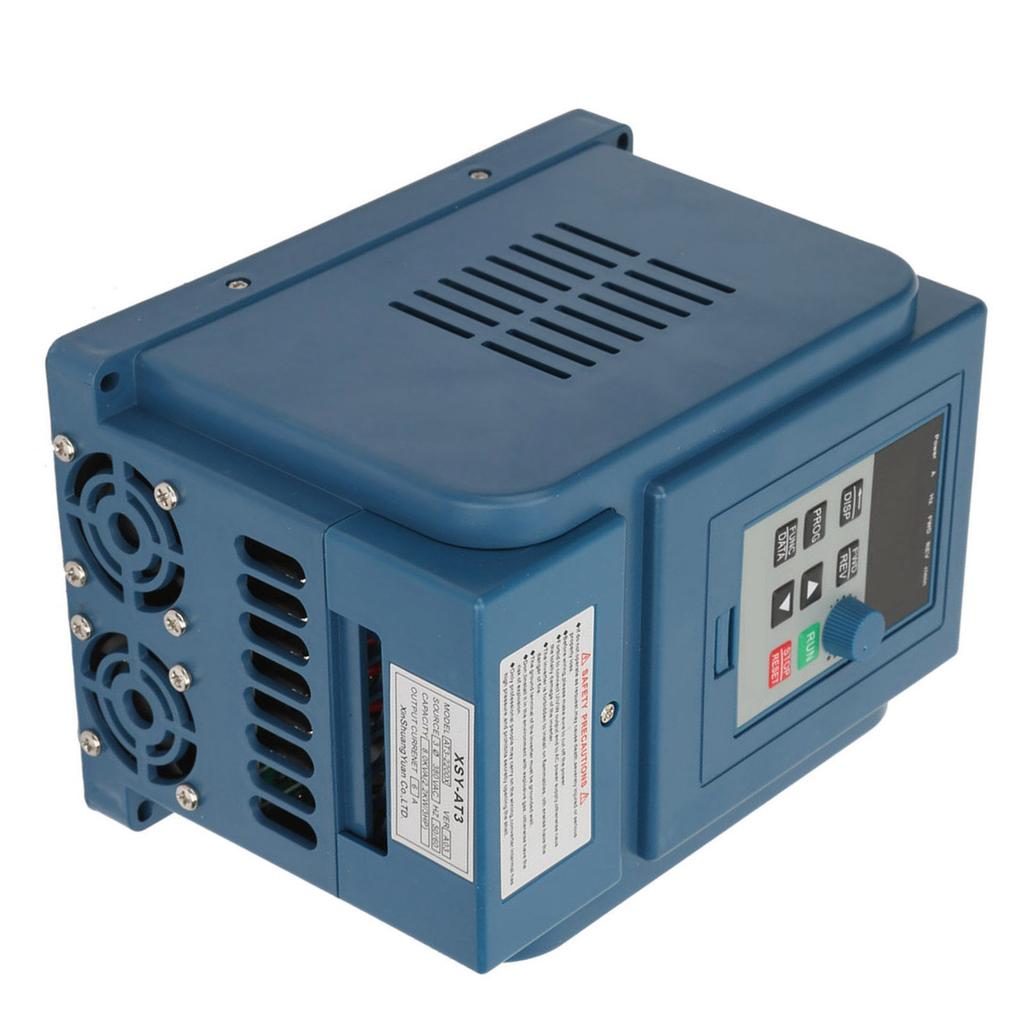

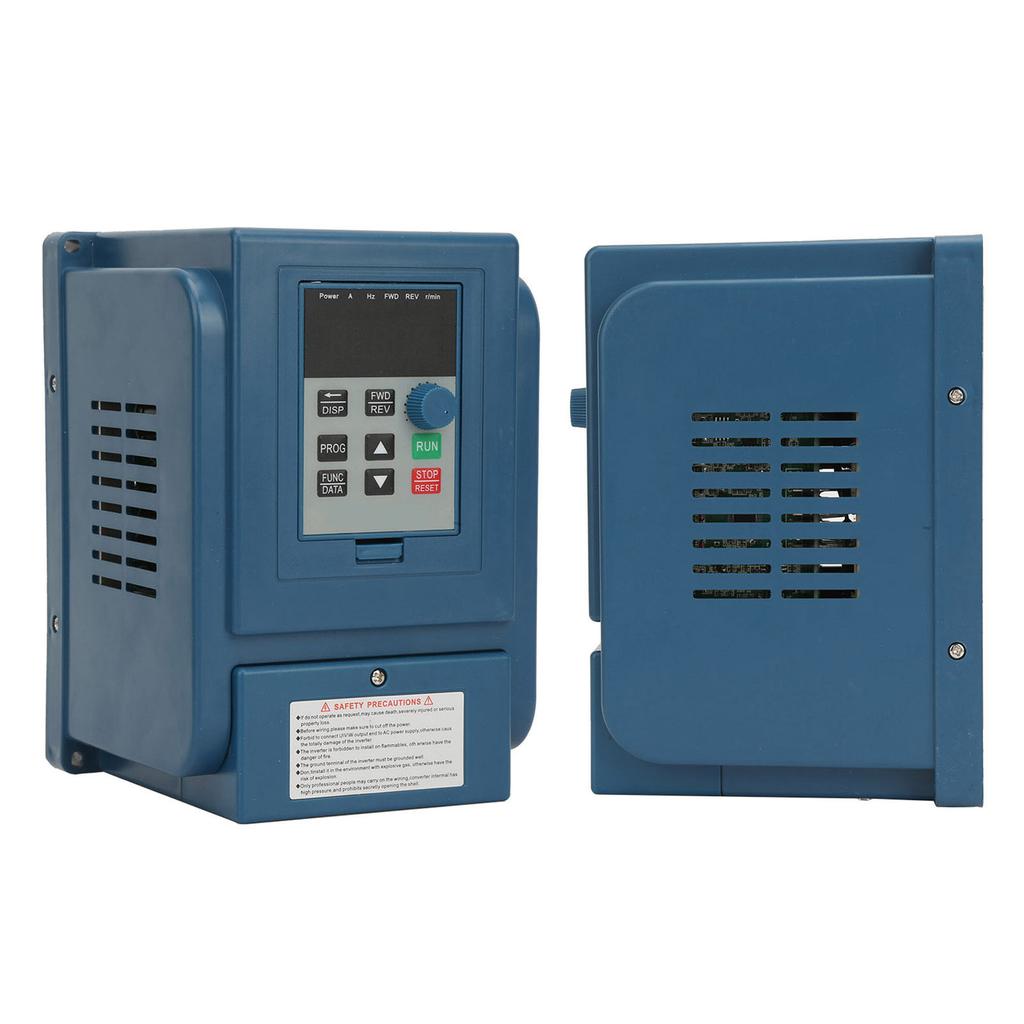

Designed with
cooling fan
and
large heat sink for better heat dissipation.
Specifications:
Model: AT32200X
Power Source Phase: Threephase
Rated Voltage: Threephase AC380V
Power Supply Voltage: Low voltage
Suitable Motor Power: 2.2kW
Filter: Builtin filter
DC Power Supply Type: Voltage type
Control Method: VF closed loop
Output Voltage Adjusting Method: PWM control
Rated Current: 6A
Protection: Overcurrent, overvoltage, overheat, undervoltage, short circuit protection
Max. Output Frequency: 400Hz
Size: 18*12.5*13cm7.1*4.9*5.1in
Weight: 1.4kg(approx.)
Terminal Instruction:
Terminal
Function
Details
15V24V
15V24V power input
200mA15V24V power supply output
X6
Input terminal 6 (wire control CWCCW switch)
X6 connects to COM, input signal is effective
X5
Input terminal 5 (wire control CCW)
X5 connects to COM, input signal is effective
X4
Input terminal 5 (wire control CW)
X4 connects to COM, input signal is effective
X3
Input terminal 3 (speed range 3)
X3 connects to COM, input signal is effective
X2
Input terminal 2 (speed range 2)
X2 connects to COM, input signal is effective
X1
Input terminal 3 (speed range 3)
X1 connects to COM, input signal is effective
485+485
485 communication port
COM
Common terminal
VI1
External analog voltage input
05V10V analog voltage input
CI
External current signal input
420mA current signal input
SP1
Open collector output 1
SP2
Open collector output 2
5V10V
5V10V 20mA power supply output
TC
Relay output
250VAC 5A30VDC 3A
TA & TB are NC, TA & TC are NO
TB
Relay output
TA
Relay output
Note:
1. When adjusting parameter, the VFD must stop working, otherwise it will not be able to save parameter setting.
2.
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Package Includes:
1 x
Variable Frequency Drive
