Feature:
1. WORKING PRINCIPLE: AVR senses the voltage in the main winding of the generator and controls the power fed into the exciter stator, raises the main rotor to maintain the generator output.
2. APPLICABLE GENERATOR: This automatic voltage regulator is applicable for Kubota all brushless generators.
3. WIDE VOLTAGE RANGE: The generator automatic voltage regulator supports 90V to 240VDC single phase input, and the maximum output is up to 63VDC at 240VAC input, 32VDC maximum at 120VAC input.
4. HIGH CURRENT: The automatic voltage regulator can continuously output 4A, with a maximum output of 7A for 60 seconds.
5. STABLE PERFORMANCE: Automatic voltage regulator has a stable structure, with excellent performance and long service life.
Specification:

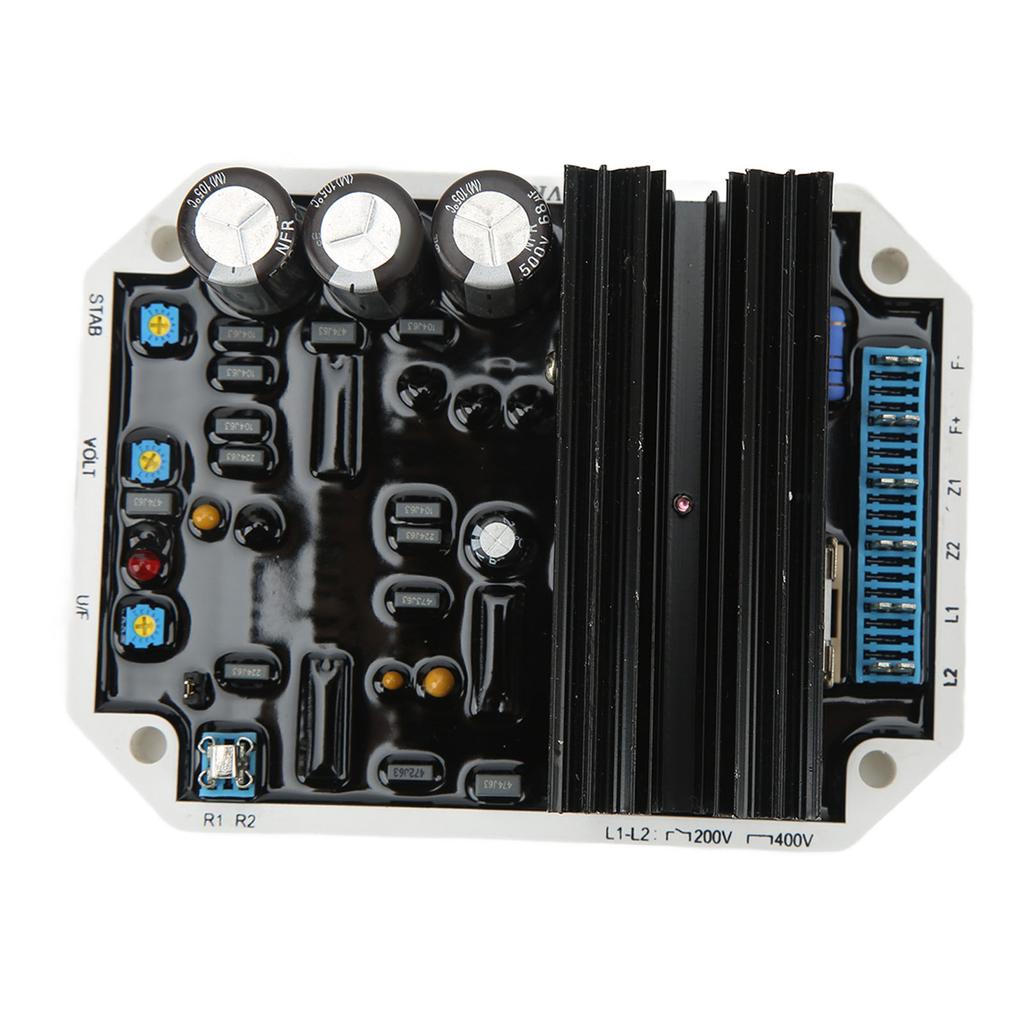

Item Type: Automatic Voltage Regulator
Material: ABS
Model: VR06
Voltage: 160-265VAC, 300-550VAC
Input:
Power Input: 90-240VAC single phase
Frequency: 50/60Hz single phase <±1% (engine speed changes within 4%)
Output:
Power Supply: 63VDC maximum at 240VAC input, 32VDC maximum at 120VAC input
Current: 4ADC continuous, maximum 7A lasting for 60 seconds
Voltage Establishment: The input terminal needs to have a residual voltage of more than 5VAC
Package List:
1 x Automatic Voltage Regulator
